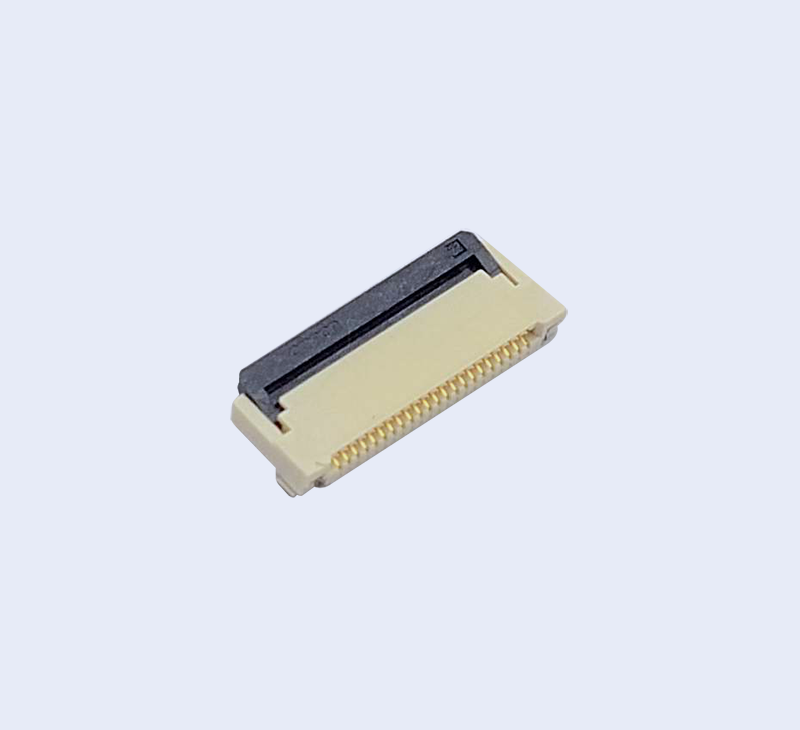

XF2M 旋轉后鎖方式（0.5mm間距 雙面觸點型）
旋轉后鎖結構提高了可靠性和工作效率
? 雙面（上和下）觸點結構可以減少元件個數。
? 適合FPC厚度t=0.3mm。
? 應對無鹵化。（＊）
＊本公司的無鹵化標準為：溴（Br）900ppm 以下、氯（Cl）900ppm 以下、鹵合計（Br+Cl）1,500ppm。
■ 種類
標準卷裝
| 極數*1 | 型號 | 極數*1 | 型號 | 極數*1 | 型號 | 極數*1 | 型號 | 每卷數量*2 |
| 6 | XF2M-0615-1A |
22 |
XF2M-2215-1A |
35 |
XF2M-3515-1A |
54 |
XF2M-5415-1AH |
1,500 |
| 8 | XF2M-0815-1A |
24 |
XF2M-2415-1A |
36 |
XF2M-3615-1A |
55 |
XF2M-5515-1AH |
|
| 10 | XF2M-1015-1A |
26 |
XF2M-2615-1A |
38 |
XF2M-3815-1A |
60 |
XF2M-6015-1AH |
|
| 12 | XF2M-1215-1A |
30 |
XF2M-3015-1A |
40 |
XF2M-4015-1A |
|
|
|
| 14 | XF2M-1415-1A |
32 |
XF2M-3215-1A |
42 |
XF2M-4215-1A |
|
|
|
|
18 |
XF2M-1815-1A |
33 |
XF2M-3315-1A |
45 |
XF2M-4515-1A |
|
|
|
|
20 |
XF2M-2015-1A |
34 |
XF2M-3415-1A |
50 |
XF2M-5015-1A |
|
|
小卷裝
| 極數*1 | 型號 | 極數*1 | 型號 | 極數*1 | 型號 | 極數*1 | 型號 | 每卷數量*2 |
| 6 | XF2M-0615-1A-R100 |
22 |
XF2M-2215-1A-R100 |
35 |
XF2M-3515-1A-R100 |
55 |
XF2M-5515-1A-R100H |
100 |
| 8 | XF2M-0815-1A-R100 |
24 |
XF2M-2415-1A-R100 |
36 |
XF2M-3615-1A-R100 |
60 |
XF2M-6015-1A-R100H |
|
| 10 | XF2M-1015-1A-R100 |
26 |
XF2M-2615-1A-R100 |
38 |
XF2M-3815-1A-R100 |
|
|
|
| 12 | XF2M-1215-1A-R100 |
30 |
XF2M-3015-1A-R100 |
40 |
XF2M-4015-1A-R100 |
|
|
|
| 14 | XF2M-1415-1A-R100 |
32 |
XF2M-3215-1A-R100 |
42 |
XF2M-4215-1A-R100 |
|
|
|
|
18 |
XF2M-1815-1A-R100 |
33 |
XF2M-3315-1A-R100 |
45 |
XF2M-4515-1A-R100 |
|
|
|
|
20 |
XF2M-2015-1A-R100 |
34 |
XF2M-3415-1A-R100 |
50 |
XF2M-5015-1A-R100 |
|
|
|
*1.請向您當地的OMRON代表處咨詢極數規格。 * 2. 訂購量須為每卷數量的整數倍。 |
■?額定值/性能
| 額定電流 | AC/DC0.5A |
|---|---|
| 額定電壓 | AC/DC50V |
| 接觸電阻 | 40mΩ以下（DC20mV最大電壓、100mA最大電流時） |
| 絕緣電阻 | 100MΩ以下（DC250V） |
| 耐壓 | AC250V持續1分鐘（漏電流：最大值1mA） |
| 插拔壽命 | 20次 |
| 使用環境溫度 |
-30～+85℃（無結冰、無凝露） |
|
XF2M-□□15-1A XF2M-□□15-1AH |
  |
| 極數＊2 | 型號規格＊1 | A | B | C | D | E | F | G |
|---|---|---|---|---|---|---|---|---|
| 6 | XF2M-0615-1A | 2.5 | 3.6 | 6.5 | 7.1 | 5.1 | 4.1 | 7.5 |
| (8) | XF2M-0815-1A | 3.5 | 4.6 | 7.5 | 8.1 | 6.1 | 5.1 | 8.5 |
| 10 | XF2M-1015-1A | 4.5 | 5.6 | 8.5 | 9.1 | 7.1 | 6.1 | 9.5 |
| 12 | XF2M-1215-1A | 5.5 | 6.6 | 9.5 | 10.1 | 8.1 | 7.1 | 10.5 |
| 14 | XF2M-1415-1A | 6.5 | 7.6 | 10.5 | 11.1 | 9.1 | 8.1 | 11.5 |
| 18 | XF2M-1815-1A | 8.5 | 9.6 | 12.5 | 13.1 | 11.1 | 10.1 | 13.5 |
| 20 | XF2M-2015-1A | 9.5 | 10.6 | 13.5 | 14.1 | 12.1 | 11.1 | 14.5 |
| 22 | XF2M-2215-1A | 10.5 | 11.6 | 14.5 | 15.1 | 13.1 | 12.1 | 15.5 |
| 24 | XF2M-2415-1A | 11.5 | 12.6 | 15.5 | 16.1 | 14.1 | 13.1 | 16.5 |
| 26 | XF2M-2615-1A | 12.5 | 13.6 | 16.5 | 17.1 | 15.1 | 14.1 | 17.5 |
| 30 | XF2M-3015-1A | 14.5 | 15.6 | 18.5 | 19.1 | 17.1 | 16.1 | 19.5 |
| 32 | XF2M-3215-1A | 15.5 | 16.6 | 19.5 | 20.1 | 18.1 | 17.1 | 20.5 |
| 33 | XF2M-3315-1A | 16.0 | 17.1 | 20.0 | 20.6 | 18.6 | 17.6 | 21.0 |
| 34 | XF2M-3415-1A | 16.5 | 17.6 | 20.5 | 21.1 | 19.1 | 18.1 | 21.5 |
| 35 | XF2M-3515-1A | 17.0 | 18.1 | 21.0 | 21.6 | 19.6 | 18.6 | 22.0 |
| 36 | XF2M-3615-1A | 17.5 | 18.6 | 21.5 | 22.1 | 20.1 | 19.1 | 22.5 |
| 38 | XF2M-3815-1A | 18.5 | 19.6 | 22.5 | 23.1 | 21.1 | 20.1 | 23.5 |
| 40 | XF2M-4015-1A | 19.5 | 20.6 | 23.5 | 24.1 | 22.1 | 21.1 | 24.5 |
| 42 | XF2M-4215-1A | 20.5 | 21.6 | 24.5 | 25.1 | 23.1 | 22.1 | 25.5 |
| 45 | XF2M-4515-1A | 22.0 | 23.1 | 26.0 | 26.6 | 24.6 | 23.6 | 27.0 |
| 50 | XF2M-5015-1AH | 24.5 | 25.6 | 28.5 | 29.1 | 27.1 | 26.1 | 29.5 |
|
54 |
XF2M-5415-1AH |
26.5 |
27.6 | 30.5 |
31.1 |
29.1 |
28.1 |
31.5 |
| 55 | XF2M-6015-1AH | 27.0 | 28.1 | 31.0 | 31.6 | 29.6 | 28.6 | 32.0 |
| 60 | XF2M-6015-1AH | 29.5 | 30.6 | 33.5 | 34.1 | 32.1 | 31.1 | 34.5 |
